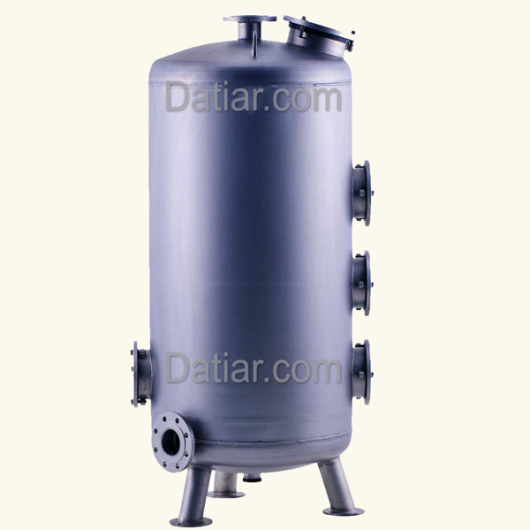

Media Filters

Greek scientist Hippocrates, when he invented the first cloth bag filter around 500 B.C., likely could not have foreseen the profound impact it would have on 21st-century industrialization and civilization.

In line with the latest innovations and advancements, DTA products are renowned for their contemporary design. This includes media filters, where DTA Co. ensures a meticulous design approach that optimizes every component, including the media itself. The result is a remarkable balance between quality performance, minimal maintenance, energy efficiency, and cost-effectiveness.

DTA’s media filters come in mono media, dual media, and multimedia models. Reach out to a DTA representative to receive advice on the optimal solution tailored to your specific requirements. If necessary, a customized solution can be designed exclusively for you.

Key Features:
– Modular design, with each plant comprising one module.
– Pre-fabricated and factory-tested for efficiency.
– Design follows ASME/IS codes.
– Air scouring feature for high flow pressure vessels.
– Scalability by simply adding modules to increase capacity.
– Durability ensured by proven quality components.
– Excellent workmanship and quality media.
– User-friendly maintenance design.
– Low maintenance requirements.
– Retrofit-ready for integration with reverse osmosis systems.

Capacity and Capability:
– Flow rate range: 1 M3/hr to 350 M3/hr.
– Inlet TSS (Total Suspended Solids): Up to 40 mg/L.
– Inlet turbidity: Up to 30 NTU* (*customized solutions handle up to 50 NTU).
– Filtration velocity: 8 to 24 M3/hr/M2.
– Filtration rating: Up to 20 Microns.
– Filtration efficiency: Up to 5ppm of Suspended Solids, Up to 5NTU of Turbidity.

Pick and Choose:
– Material of construction options: FRP, Mild Steel & Stainless Steel.
– Coating / lining options: Epoxy/FRP/Rubber lined bottom collection system – strainer plate or Header and laterals.
– Controls: Electrical controls/microprocessor-based/PLC controls.

Applications:
– Turbidity and total-suspended solids removal.
– Pre-treatment for reverse osmosis and desalination plants.
– Tertiary treatment for wastewater treatment plants.
– Septic tank expansion.
– Swimming pool filtration.
– Cooling tower and process water treatment.
– Drinking water treatment.

DTA’s commitment to innovative design and quality engineering ensures that its media filters provide effective solutions across a range of applications.
