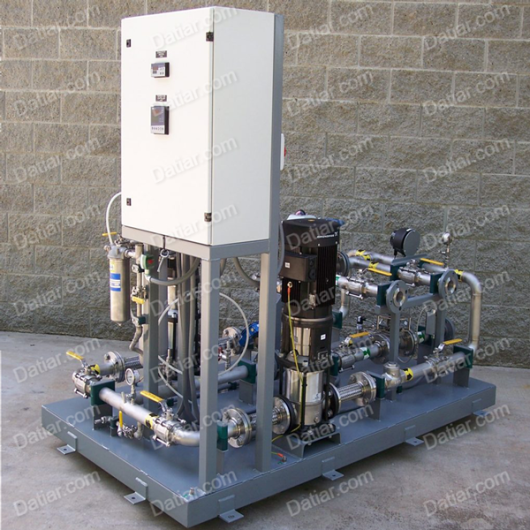

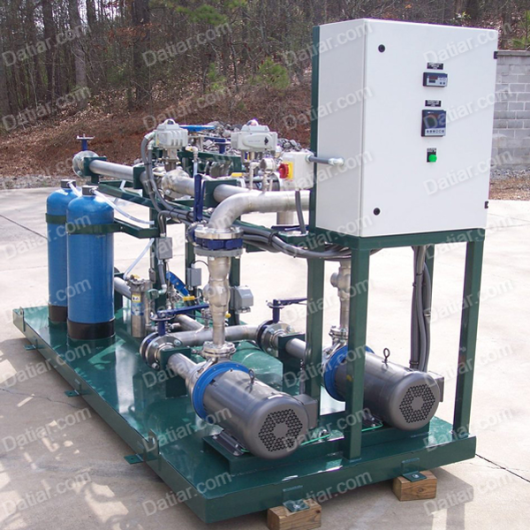

Modular Pipeline Pumping Package

DANATIVARA Modular Pipeline Pumping Packages, offer a versatile solution for a wide range of product pumping applications. These packages are thoughtfully pre-designed, meticulously packaged, and thoroughly tested to ensure reliable performance in diverse scenarios.

Benefits:
– Single Source Accountability:
– A pre-packaged modular design that costs less compared to component-based site-built systems, resulting in reduced overall project costs.
– Minimized field erection time, leading to a shorter project delivery schedule.
– Complete system function testing conducted prior to shipment, ensuring operational readiness upon installation.

Adherence to Industry Standards:
– Electrical design adheres to NEC, CSA, or IEC standards.
– Piping/tubing designed according to ANSI B31.3/ANSI B31.8 standards.
– Structural Steel Assembly conforms to AWS D1.1 specifications.

Standard Features:
– Modularized Construction for efficient installation and maintenance.
– Utilization of API BB1 & BB3 Pumps for reliable pumping performance.
– Integration of ASME Inlet Strainers to ensure clean fluid intake.
– Choice of Socket Welded or ButtWelded Piping for secure connections.
– Inclusion of Full Port Ball Valves for precise control.
– On-Skid Spill Containment for environmental protection.
– Dual Scale Liquid Filled Pressure Gauges for accurate pressure monitoring.

Optional Features:
– Automated Minimum Flow Bypass for enhanced control.
– Option for Thermal or Full Flow Relief Valves for safety measures.
– Integration of Actuated Valves – Air or Electric for automated operation.
– Pump Protection features including:
– Casing RTDs for temperature monitoring.
– Thermal Flow Switch for flow control.
– Vibration Probes/Transmitters for detecting irregularities.
– Bearing RTDs/Temperature Transmitters for bearing health.
– Motor Protection features including:
– Bearing RTDs/Temperature Transmitters for motor bearings.
– Vibration Probes/Transmitters for motor vibration analysis.
– Winding RTDs for monitoring winding temperature.
– Custom Skid Decking to suit specific project requirements.
– Custom Paint options for aesthetic and environmental considerations.

Additional Services:
– Comprehensive support services including Installation, Training, and Start-Up Supervision.
– Option for an Extended Warranty to ensure long-term peace of mind.
– Tailored solutions with Customized Systems to meet specific project needs.
